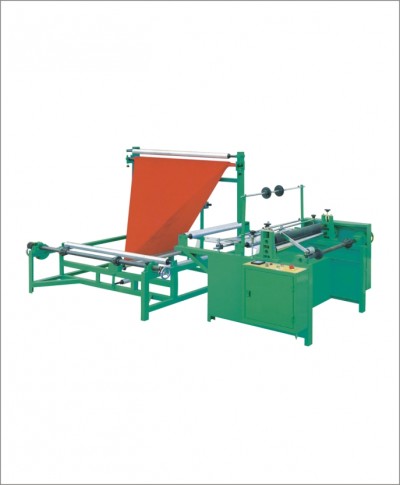

MDZB Film folding machine

MDZB Film folding machine

This machine is one part of the heat cutting machine set, suitable for folding BOPP sheet with such functions as automatic gluing, pearly-lustre film laminating, hobbling and longitudinal sealing(used together with super sonic generator) and opening breaking of roll material.

Technical data:

Model MDZB1200 MDZB1400 MDZB1600
Max. width of base material 1200mm 1400mm 1600mm
Dia of jumbo roll 650mm 650mm 650mm
Max. roll speed 90m/min 90m/min 90m/min
Total power 1.5kw 2kw 2.5kw
Outline dimension 2400x1500x1500mm 2600x1700x1600mm 2800x1900x1700mm
Weight 800kg 900kg 1000kg
