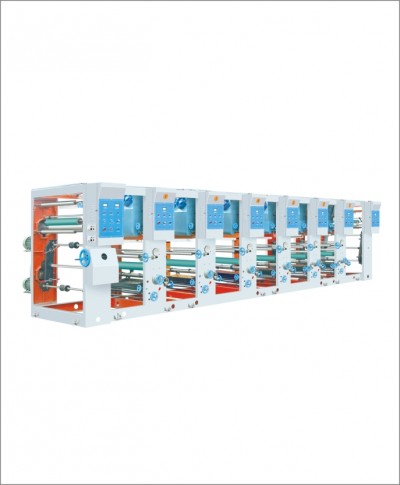

MDASY600-1200 gravure printing machine

MDASY600-1200 gravure printing machine

Main Technical parameters:

It can be used for continuously printing various plastic films, cloths, thin leathers and package products, etc with one -sided and two -sided printing finished by once-througth operation.360 register device is accruagte and doesn’t affect stretching of film so that color-checking of printing can be adjusted freely at any time. The farinfrared tube drying unit can keep drying at 50m\min so as to make picture clear and exquisite. The machine models of 2-8 colors can be chosen freely



Model MDASY600B MDASY800B MDASY1000B
Printing width(mm) 600 800 1000
Printing Length(mm) 200-1250 200-1250 200-1250
Max.Speed of printing(m/min) 10-60 10-60 10-60
Format Precision(mm) <0.15 <0.15 <0.15
Power of main motor(kw) 4 4 5.5
Fan Power(kw/组) 0.19 0.19 0.19
Heating Power(kw) 3.2 3.2 3.2
Outline dimension(mm) 8800×1200×1700 8800×1400×1700 8800×1600×1700
